Lamborghini Revuelto Technical Dossier
Lamborghini V12 HPEV Hybrid Supercar (High Performance Electrified Vehicle) • 2023–Present ✓ Verified Data

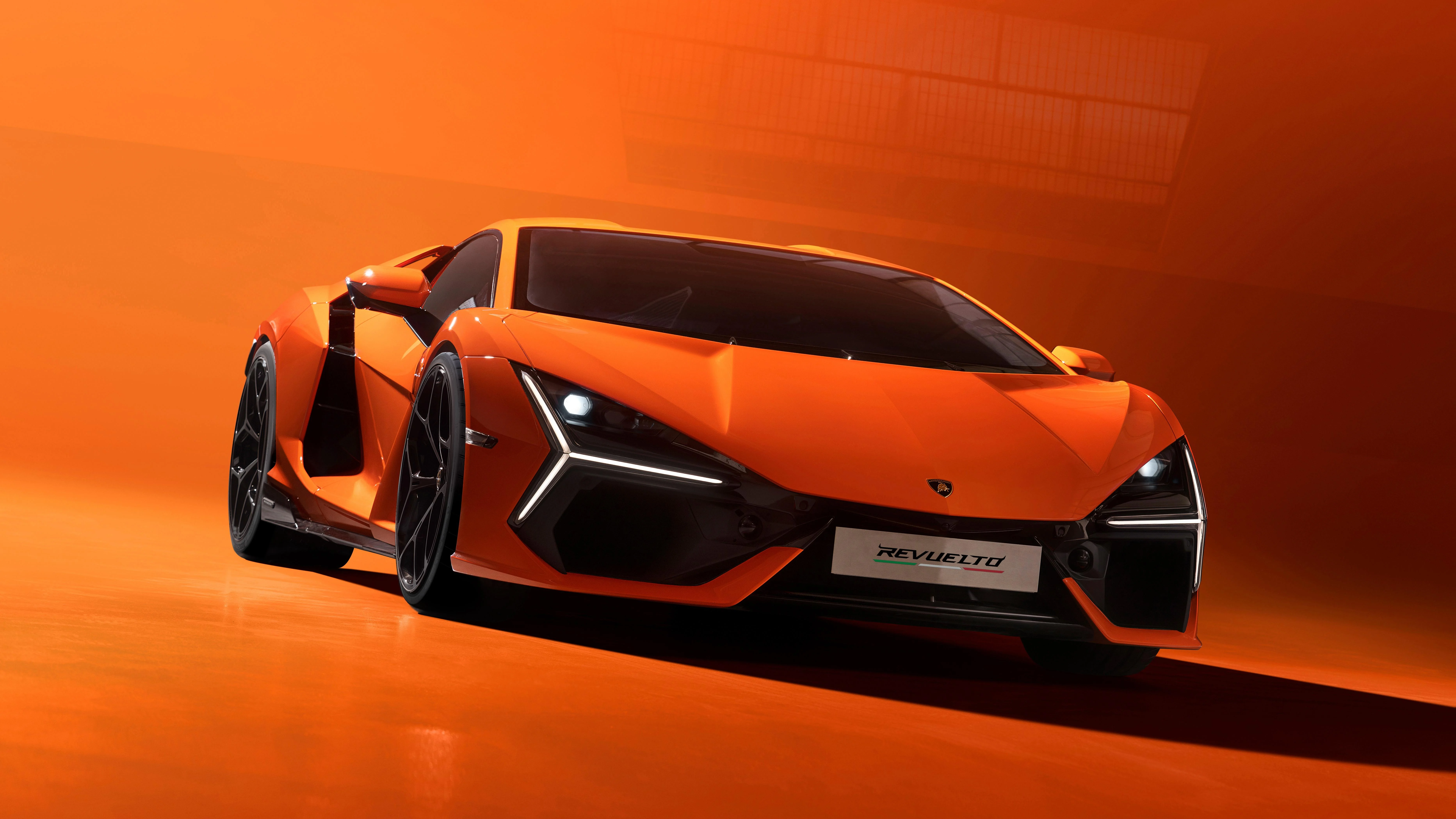

Lamborghini Revuelto

The Lamborghini Revuelto is the flagship successor to the Aventador and the brand's first High Performance Electrified Vehicle (HPEV). Built to celebrate Lamborghini's 60th anniversary, it pairs a newly developed, free-breathing 6.5-liter naturally aspirated V12 engine revving to 9,500 rpm with three electric motors and an innovative transverse 8-speed dual-clutch transmission, creating a unified 1,001 horsepower all-wheel-drive hybrid masterpiece.

Peak Horsepower
1,001 hp (1,015 PS / 747 kW) @ 9,250 rpm (V12: 814 hp + Electric: 187 hp combined)
0–60 MPH Launch
2.3 seconds (0–100 km/h: 2.5 seconds)
Top Track Speed
217+ mph (350+ km/h)
Curb Weight
3,907 lbs (1,772 kg dry / ~1,860 kg curb)
Engineering Telemetry

Technical Specifications

Source: Automobili Lamborghini S.p.A. Official Technical Dossier (LB744)
Engine / Powertrain 6.5L Naturally Aspirated 65° V12 (L545) + 3 Electric Motors
Peak Output 1,001 hp (1,015 PS / 747 kW) @ 9,250 rpm (V12: 814 hp + Electric: 187 hp combined)
Peak Torque 535 lb-ft (725 Nm) @ 6,750 rpm (ICE) + Electric Torque Vectoring
Transmission 8-Speed Transverse Dual-Clutch (DCT)
Drivetrain Layout e-AWD (All-Wheel Drive with Front Dual-Motor Torque Vectoring)
Acceleration (0–60 MPH) 2.3 seconds (0–100 km/h: 2.5 seconds)
Top Speed 217+ mph (350+ km/h)
Curb Weight 3,907 lbs (1,772 kg dry / ~1,860 kg curb)
Exterior Dimensions 4,947 mm L × 2,032 mm W × 1,160 mm H
Data Verification Status Verified (Homologation Standard)

Development History

Codenamed LB744 and officially unveiled in March 2023, the Revuelto rewrote Lamborghini's engineering architecture. Built around an ultra-rigid 'Monofuselage' carbon-fiber monocoque with a Forged Composites front structure, the car is 10% lighter and 25% torsionally stiffer than the Aventador. Its revolutionary layout houses a 3.8 kWh battery in the central tunnel (formerly the transmission tunnel), while the newly engineered L545 V12 is rotated 180 degrees to mate with a compact rear transverse 8-speed DCT. Two axial flux motors power the front wheels independently with torque vectoring, while a third radial flux motor is integrated directly into the transmission to support the rear axle and manage engine starting and power recuperation.

🔒
